Alger Park Stream Restoration

EQR EQR
Apr 12, 2017
2 min read

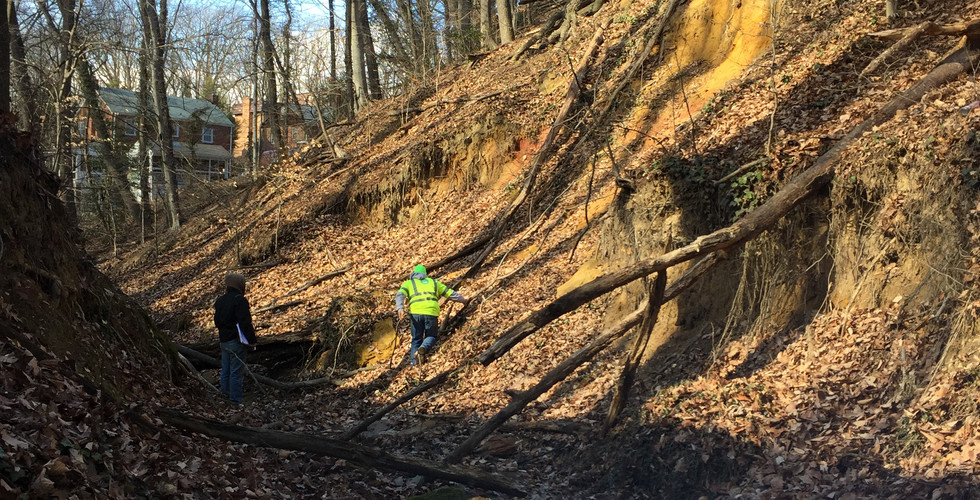

EQR was contracted by the Department of Energy and Environment to restore 1,500 linear feet of stream channel within Alger Park, a seven acre park in the Anacostia watershed in Southeast Washington, D.C., where an estimated 41% of the watershed is impervious. Over time the amount of stormwater runoff entering this stream channel caused it to become a heavily eroded gully (a water-worn ravine) with no storm water treatment or management. EQR’s goal was to restore the habitat, water quality and stability to one of the most highly eroded streams in Washington, D.C.

Biohabitats Inc developed a stormwater step pool conveyance system for this site with a series of wetland grade controls at the bottom of the park where the water is connected to a floodplain before exiting the park through a trash rack. The construction of this design involved the import of over 4,000 cubic yards of fill dirt and 4,800 tons of a sand/woodchip mix that was used to fill the massive eroded cavities. After the channel was filled, multiple crews started the installation of approximately 1,300 tons of imbricated size boulders for the various stream structures, such as riffles, boulder grade controls, cascades and headwalls.

1,600 tons of cobble were imported as well as other aggregates to bolster the channel for the high flow events that eroded all of the soil in the past.

EQR reused most of the wood material that was generated from the clearing operations on site as either log sill structures, wetland grade controls, woody debris check dams, woody toe slope protection, in-stream woody debris, or chipped it and used as wood chips for the sand mixture.

Six stormwater outfalls were crumbling into the stream channel because the flows had undercut the manhole structure. EQR rehabilitated each one by reinforcing the bank and install boulder outfall protections such as headwalls or cobble swales where beehive grates were installed to slow the water exiting the pipes.

EQR partnered with Timmons Group, General Services, L.A Howard, Resource Industries and Empire Landscape for survey stakeout and as-builts, tree clearing and E&S control installation, cast in place concrete headwall, aggregate supply, and plant installation respectively.

We were pleased to work with the DOEE! It is always a treat to be able to work with partners whose passion for the environment matches our own.

UPDATE:

On October 9th, 2017, we celebrated the ribbon cutting of Alger Park!

Client Served: Department of Energy and Environment (DOEE)
